Single girder overhead travelling crane | India

SINGLE GIRDER EOT CRANES

Specifications

Safe working Load: Upto 20 T
Span Range: Upto 30m
Height of Lift: As per customer’s specifications
Class of Duty: Upto class IV (M8)
Design Standards: As per is 3177 & IS 807 / IS 3938,our Electric Wire Rope Hoists are used on these cranes

Product Description

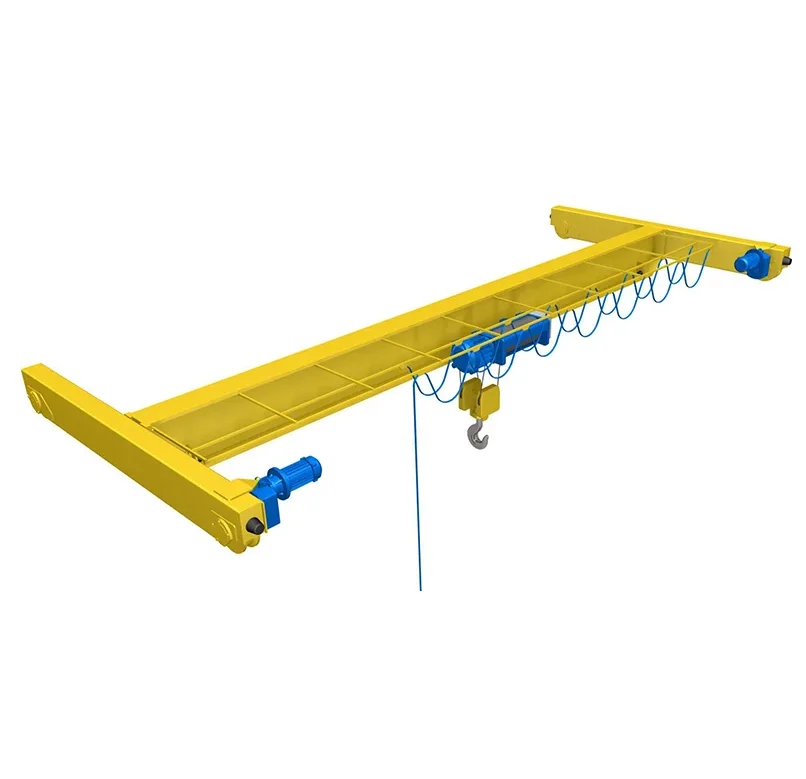

Single-girder overhead travelling cranes provide you with high-quality Munk technology at a particularly attractive price. They ensure maximum rigidity for a minimum deadweight. This keeps the load on the crane runway low, and a cost-effective design can be selected for the building. They also offer the benefits of outstanding crane geometry, resulting in exceptional travel characteristics. The Munk Design Jomech Electric Wire Rope hoist is of optimum design for crane applications. Therefore, the entire crane installations meets your demands for greater efficiency.

Product Singal Girdar EOT Cranes

BrandJOIST-O-MECH

CategoryCranes

Benefits

Computerised Design Program For Complete Crane.
End carriages of torsionally rigid, welded construction
Travel wheels of highly wear-resistant
Connections between the main girder and end carriages manufactured to mechanical engineering tolerances for minimum wear
Travelling Wire rope hoist of low-headroom design provides better Height Of Lift area under hook
Power supply to the crab by means of highly flexible flat cable with protective earth conductor
Control pendant push button with independent movement around the span.
Optional: Radio remote control with display and proportional pushbuttons
Optimum anti-corrosion protection of all parts thanks to pre-treatment of steel components to industry standard
Paint finish golden yellow & Hoist in azure blue.
Precise control of up / down motion and / or travel motion can be achieved by fitting Variable Frequency Drives in the panels (optional)

single girder crane manufacturer and supplier in mumbai pune bangalore
